50MHZ Digital Speicher Oszilloskop UNI-T UTD2052CEL

Modell / Model		UT2042C	UT2062CE	UTD2052CEL	UTD2102CEL	UT2202CE
Bandbreite / Bandwidth		40 MHz	60 MHz	50 MHz	100 MHz	200 MHz
Record length		1Mpoints ( 1024k points)
Speichertiefe /Memory Depth		only 2.5kpoints	25kpoints	25kpoints	25kpoints	25kpoints
Kanäle / Channels		zwei Kanäle + externer Trigger / two Channels + External Trigger
Echtzeitabtastrate / Real-time Sample Rate		250 MSa/s	1GSa/s	1GSa/s	1GSa/s	1GSa/s
Äquivalente Abtastrate / Equivalent Sample Rate		2.5 GSa/s	25 GSa/s	50 GSa/s	50 GSa/s	50 GSa/s
Echtzeitabtastrate / Rise Time		14 ns	8,7 ns	7 ns	3.5 ns	1.75 ns
Zeitbasisbereich / Time Base Range		20 ns/div to 50 s/div	5 ns/div to 50 s/div	5 ns/div to 50 s/div	5 ns/div to 50 s/div	2 ns/div to 50 s/div
Vertikale Teiler / Vertical Sensitivity		2 mV/div to 5 V/div	2 mV/div to 5 V/div	1 mV/div to 20 V/div	1 mV/div to 20 V/div	2 ns/div to 50 s/div
X-Y Operation	Bandwidth	25 MHz	40 MHz	50 MHz	100 MHz	200 MHz
	Phase Difference	± 3°
Trigger Arten / Trigger Modes		Auto, Normal, Single,     Edge,  Pulse Width,  Video
Trigger-Quellen / Trigger Sources		CH1, CH2, Ext, Ext/5, AC Line, Alternate
Triggerempfindlichkeit / Trigger Sensitivity		>=1DIV
Triggerkopplung / Trigger Coupling		DC, AC, HF-reject, LF-reject ca. 80kHz, 50% Taste,
Erfassung / ACQ		Sample, Peak Detect, Average, Fast Aqusation



Common Parameters
Input Impedance	1 MOhm±2% || 24 pF±3pF
Time Base Precision	±150ppm
Vertical Sensitivity	2 mV/div to 5 V/div (>10mV/div ±3%)   ; UTD2xxxxCEL 1 mV/div to 20 V/div
Vertical Resolution	8 bits
Input Coupling	DC, AC, Ground
Maximum Input Voltage	400 V (DC + AC peak)
Automatic Measurements	Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay 1?2, Delay 1?2
Cursor Measurements	Manual, Track and Auto Measure modes
Math	+ , - , x, / ,  FFT
Storage	Internal:10 Waveforms and 10 Setups
	USB:BMP, Waveforms and Setups
I/O	UTD2xxxCEL Modelle USB Device,USB Host Front ; UT2xxxCE USB Device,USB Host , PASS/FAIL OUT
Display	UT2xxxCE: simple active color TFT (64K, Color LCD), 320 x 240 ; UTD2xxxCEL: simple active color TFT (64K, Color LCD), 800 x 480
Power	Worldwide Use, 100 – 240 V / 50 VA Max
Weight	2.5 kg

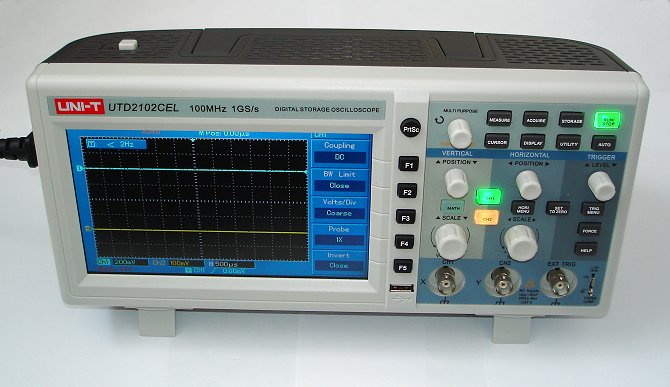

einige Bilder vom UNI-TREND UTD2052CEL (UT2102CEL, UT2102 CEL)
