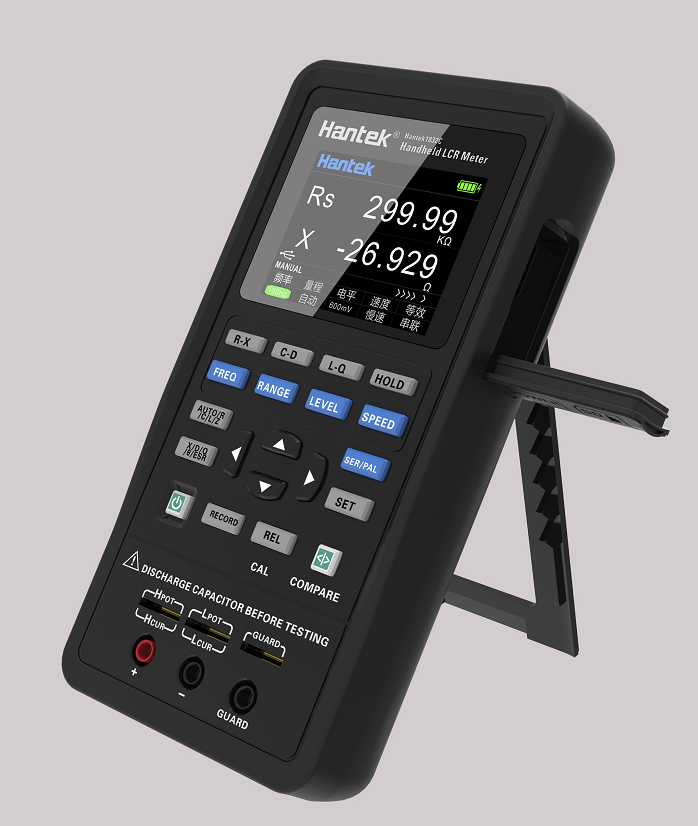

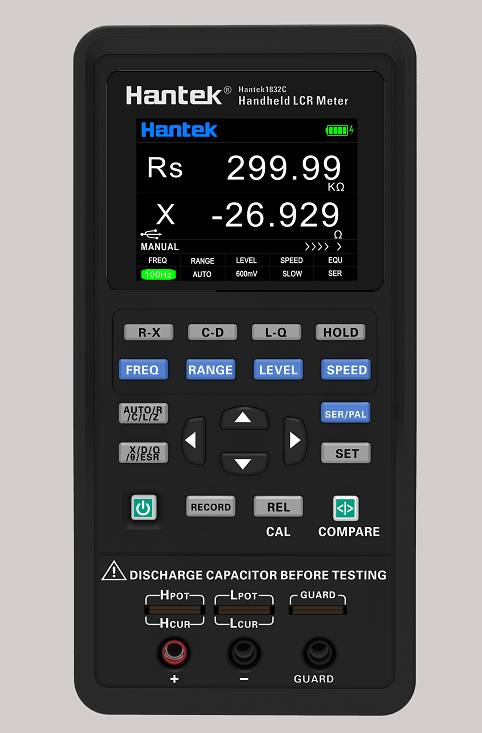

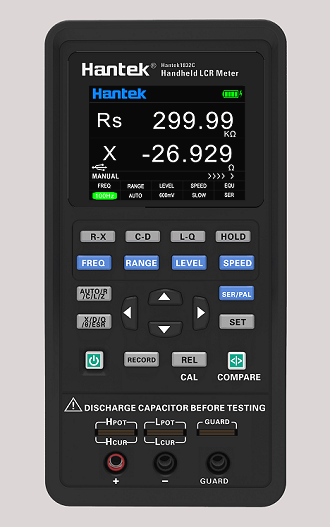

Hantek 1833C 100Hz-100kHz Hand LCR Meter

Hantek 1833C 100Hz-100kHz Hand LCR MeterHantek 1833C ,LCR-Meter mit 10 Messfrequenzen, 2.8"TFT

Art.Nr.:PD-01310
Hersteller:Hantek
Lieferzeit: am Lager 2-4 Tage*


2024-Top-Preis-Empfehlung
inkl. MwSt (19%)
zzgl. Versandkosten

In den Warenkorb
Hantek 1833C 100kHz einfaches 2-, 4 Leiter Hand LCR Meter
100Hz bis 100kHz, 10 Messfrequenzen
2.8" Farb TFT, R bis max 20MOhm, C bis max. 20mF, L bis max 2000H

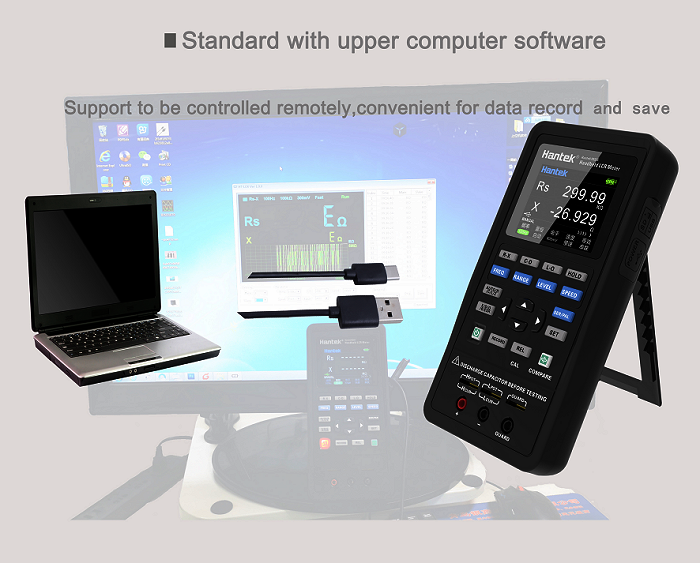

USB Interface und PC Software
SCPI Befehlsliste zur Einbindung in eigene Software



Sofort bestellbar - Sofort Lieferbar ! Fragen herzlich willkommen !
- Wir beraten Sie sehr gern - !

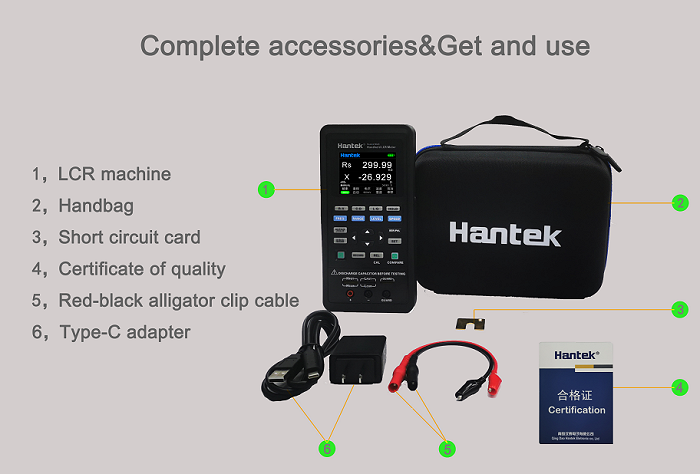

Lieferumfang:
Hantek 1833C LCR Meter
Aufbewahrungstasche
USB-C Kabel
USB Steckernetzteil
Kurzschlußplatte zum Abgleich
ein Satz kurze Krokodrill-Messkabel



Modellübersicht:



Model
Hantek1832C Hantek1833C
Test frequency

100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz,

40kHz

100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz,

40kHz, 50kHz, 75kHz, 100kHz

best Accuracy 0.30%
Equivalent Circuit series, parallel
AC Test level 0.6Vrms 0.6Vrms, 0.3Vrms
Measurement way manual, auto
Display screen 2.8 inch TFT LCD
Measurement parameters principle parameter: L/C/R/Z   deputy parameter: X/D/Q/?/ESR
Principle parameter L/C/R/Z
Deputy parameter X/D/Q/?/ESR
Inductance Measurement range (L) 0-2000H
Capacitance Measurement range (C) 0-20mF
Resistance  Measurement range (R) 0-20MO
Measurement speed high speed(4 times/s), intermediate speed(twice/s), low speed(once/s)
Reset function open circuit calibration, short-circuit calibration
Test terminal configuration 3 terminal, 5 terminal
General feature
standard with 1.Type-C data cable; 2.power adapte; 3.short circuit card; 4.red and black rubber plug; 5.large capacity lithium battery

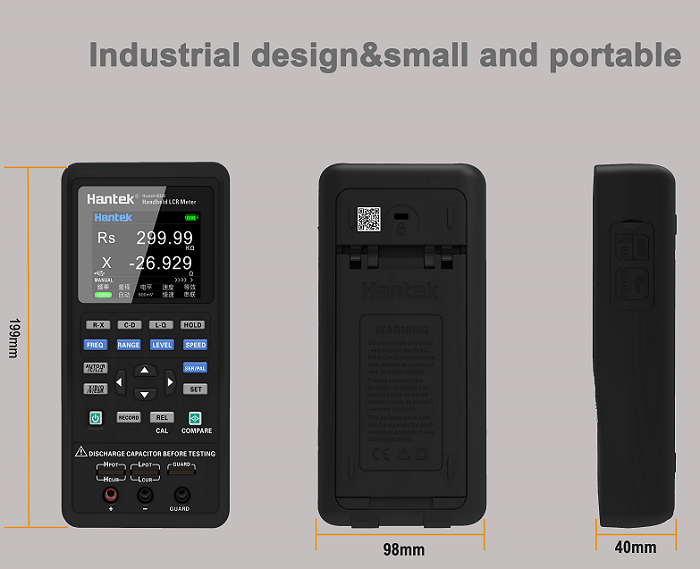

Abmessung: 199 x 98 x 40 mm

Betrieb über Steckernetzteil, USB-C, Accu 2x 18650
low power disign

Capacitance C and dissipationD
100Hz/120Hz/400Hz
Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode
20mF  4.000mF~20.000mF  8.00%+5 digits 0.08 series
4mF  400.0µF~3.9999mF  2.00%+3 digits 0.02 series
400µF  40.00µF~399.99µF  0.60%+2 digits  0.006 series
40µF  4.000µF~39.999µF  0.40%+2 digits 0.004 series
4µF  400.0nF~3.9999µF  0.40%+2 digits 0.004 ----
400nF  40.00nF~399.99nF  0.4%+2 digits 0.004 parallel
40nF  4.000nF~39.999nF  0.5%+3 digits 0.005 parallel
4nF  0pF~3.999nF  1.5%+5 digits  ------  parallel
1KHz/4kHz
Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode
1000uF  400.0uF~999.9uF  3.00%+5 digits 0.03 series
400µF  40.00µF~399.99µF  1.50%+3 digits 0.015 series
40µF  4.000µF~39.999µF  0.60%+2 digits  0.006 series
4µF  400.0nF~3.9999µF  0.40%+2 digits 0.004 -----
400nF  40.00nF~399.99nF  0.4%+2 digits 0.004 parallel
40nF  4.000nF~39.999nF  0.6%+3 digits 0.006 parallel
4nF  400.0pF~3.9999nF  0.6%+3 digits 0.006 parallel
400pF 0.0pF~399.9pF 3%+5 digits ------ parallel
10KHz
Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode
100µF  40.00µF~100.00µF  4.00%+5 digits  0.04 series
40µF  4.000µF~39.999µF  2.0%+3 digits 0.02 series
4µF  400.0nF~3.9999µF  0.60%+2 digits 0.006 series
400nF  40.00nF~399.99nF  0.4%+2 digits 0.004 series
40nF  4.000nF~39.999nF  0.4%+2 digits 0.004 ------
4nF  400.0pF~3.9999nF  0.4%+2 digits 0.004 parallel
400pF 40.00pF~399.99pF 0.6%+3 digits 0.006 parallel
40pF 0.00pF~39.99pF 2.5%+5 digits ------  parallel
40KHz/50KHz
Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode
100µF  40.00µF~100.00µF  6.00%+5 digits 0.06 series
40µF  4.000µF~39.999µF  4.0%+3 digits  0.04 series
4µF  400.0nF~3.9999µF  1.0%+2 digits  0.01 series
400nF  40.00nF~399.99nF  0.6%+2 digits 0.006 series
40nF  4.000nF~39.999nF  0.6%+2 digits  0.006 ------
4nF  400.0pF~3.9999nF  0.6%+2 digits  0.006 parallel
400pF 40.00pF~399.99pF 1%+3 digits 0.01 parallel
40pF 0.000pF~39.999pF 3%+5 digits ------  parallel
75KHz/100KHz
Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode
10µF  4.000µF~10.000µF  8.0%+20 digits 0.08 series
4µF  400.0nF~3.9999µF  5.0%+10 digits  0.05 series
400nF  40.00nF~399.99nF  1.5%+5 digits 0.015 series
40nF  4.000nF~39.999nF  1%+2 digits 0.01 series
4nF  400.0pF~3.999nF  1%+2 digits 0.01 ------
400pF 40.00pF~399.99pF 1.5%+2 digits 0.015 parallel
40pF 4.000pF~39.999pF 2%+5 digits 0.02 parallel
4pF 0.000pF~3.999pF 5%+10 digits ------  parallel
Inductance L and quality factor
100Hz/120Hz/400Hz
Range Display range Accuracy Le  Accuracy De* Recommended equivalent mode
1000H  400.0H~999.9H  2.00%+3 digits 0.02 parallel
400H  40.000H~399.99H  0.60%+2 digits 0.006 parallel
40H  4.000H~39.999H  0.40%+2 digits 0.004 parallel
4H  400.0mH~3.9999H  0.40%+2 digits  0.004 ----
400mH  40.00mH~399.99mH  0.4%+2 digits 0.004 series
40mH  4.000mH~39.999mH  0.6%+3 digits 0.006 series
4mH  0uH~3.999mH  3.0%+5 digits ------  series
 1kHz/4KHz
Range Display range Accuracy Le  Accuracy De* Recommended equivalent mode
1H  400.0mH~999.9mH  1.50%+3 digits 0.015 parallel
400mH  40.00mH~399.99mH  0.4%+2 digits 0.004 parallel
40mH  4.000mH~39.999mH  0.4%+2 digits 0.004 ------
4mH  400.0uH~3.9999mH  0.4%+2 digits 0.004 series
400uH 40.00uH~399.99uH 0.8%+3 digits 0.008 series
40uH 0.00uH~39.99uH 3.0%+5 digits ------ series
10kHz
Range Display range Accuracy Le  Accuracy De* Recommended equivalent mode
100H  40.00H~100.00H  2.0%+3 digits  0.02 parallel
40H  4.000H~39.999H  0.60%+2 digits 0.006 parallel
4H  400.0mH~3.9999H  0.40%+2 digits  0.004 parallel
400mH  40.00mH~399.99mH  0.4%+2 digits 0.004 ------
40mH  4.000mH~39.999mH  0.4%+2 digits 0.004 series
4mH  400.0uH~3.9999mH  1%+3 digits 0.01 series
400uH 0.0uH~399.9uH 3.0%+5 digits ------ series
40kHz/50kHz
Range Display range Accuracy Le  Accuracy De* Recommended equivalent mode
1H  400.0mH~999.9mH  2.0%+4 digits 0.02 parallel
400mH  40.00mH~399.99mH  0.8%+2 digits 0.008 parallel
40mH  4.000mH~39.999mH  0.8%+2 digits 0.008 ------
4mH  400.0uH~3.9999mH  0.8%+2 digits 0.008 series
400uH 40.00uH~399.99uH 1.5%+3 digits 0.015 series
40uH 0.000uH~39.999uH 4.0%+5 digits ------ series
75KHz/100kHz
Range Display range Accuracy Le  Accuracy De Recommended equivalent mode
100mH  40.00mH~399.99mH  2.5%+2 digits 0.025 parallel
40mH  4.000mH~39.999mH  1.5%+2 digits 0.015 parallel
4mH  400.0uH~3.9999mH  1.0%+2 digits 0.01 ------
400uH 40.00uH~399.99uH 1.0%+2 digits 0.01 series
40uH 4.000uH~39.999uH 1.5%+5 digits 0.015 series
4uH 0.000uH~3.999uH 4%+10 digits ------ series
 Impedance Z and phase angle
100Hz/120Hz/400Hz/1kHz/10kHz
Range Display range Accuracy Ze Accuracy Recommended equivalent mode
20MO 4.000MO~20.000MO 3.0%+10 digits 3.4° parallel
4MO 400.0kO~3.9999MO 1.2%+3 digits 0.7° parallel
400kO 40.00kO~399.99kO 0.3%+3 digits 0.2° parallel
40kO 4.000kO~39.999kO 0.25%+2 digits 0.1° ------
4kO 400.0O~3.9999kO 0.25%+2 digits 0.1° series
400O 40.00O~399.99O 0.25%+2 digits 0.1° series
40O 4.000O~39.999O 0.5%+3 digits 0.3° series
4O 0.4000O~3.9999O 2.0%+3 digits 1.1° series
0.4O 0.0000O~0.3999O 4.0%+3 digits ------ series
40kHz/50KHz
Range Display range Accuracy Ze Accuracy Recommended equivalent mode
20MO 4.000MO~20.000MO 7.0%+41 digits 4.0° parallel
4MO 400.0kO~3.9999MO 2.5%+3 digits 1.4° parallel
400kO 40.00kO~399.99kO 1.0%+4 digits 0.6° parallel
40kO 4.000kO~39.999kO 1.0%+4 digits 0.6° ------
4kO 400.0O~3.9999kO 0.5%+3 digits 0.3° series
400O 40.00O~399.99O 0.5%+3 digits 0.3° series
40O 4.000O~39.999O 0.7%+4 digits 0.4° series
4O 0.4000O~3.9999O 2.0%+6 digits 1.1° series
0.4O 0.0000O~0.3999O 5.0%+10 digits ------ series
75KHz/100kHz
Range Display range Accuracy Ze Accuracy Recommended equivalent mode
20MO 4.000MO~20.000MO 9.0%+20 digits 5.2° parallel
4MO 400.0kO~3.9999MO 4.0%+10 digits 2.3° parallel
400kO 40.00kO~399.99kO 1.5%+4 digits 0.9° parallel
40kO 4.000kO~39.999kO 1.0%+2 digits 0.6° parallel
4kO 400.0O~3.9999kO 0.7%+2 digits 0.4° ------
400O 40.00O~399.99O 0.7%+2 digits 0.4° series
40O 4.000O~39.999O 1.0%+5 digits 0.6° series
4O 0.4000O~3.9999O 3.0%+10 digits 1.7° series
0.4O 0.0000O~0.3999O 7%+20 digits ------ series




Versandgewicht: 1,5kg


einige weitere Informationen Manual und Bilder vom Hantek 1733C LCR Meter unter:

die Bedienungsanleitung vom Hantek 1833C LCR Meter finden Sie hier:
